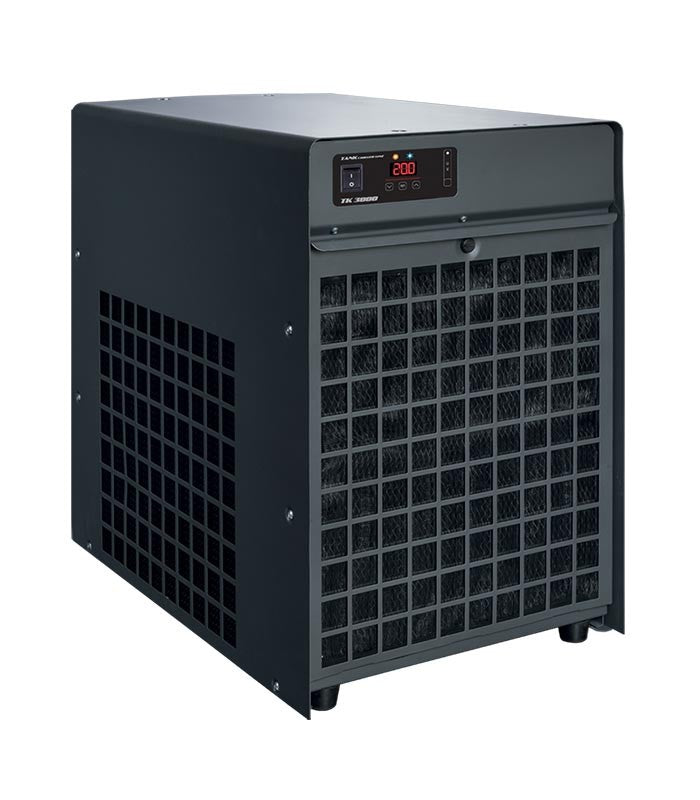

Teco Chiller TK6000

MADE IN ITALY design and production

Efficient Cooling Technology
The exclusive use of high-quality compressors and of the titanium coaxial heat exchanger, ensures high performance and low energy consumption. The set of technologies used allows you to decrease noise levels and achieve the highest COP (Coefficient Of Performance) contributing to significant energy savings.

Digital Thermostat
Intuitive setting of functions and accurate temperature detection, resolution 0.1°C/0.2°F. The setting range is 0°-35°C (32°F-95°F) and there is a closed loop temperature control system with high accuracy and extremely tight differential (0.5°C/1°F). Displayed temperature is in °C or °F and there are security alarms.

Efficient Design
The chiller, with its innovative design, is characterized by a solid structure designed to guarantee a perfect protection against rust. The functionality of the shape and the compact size are also suitable for confined spaces.

Unique Feature
The innovative TECOair SYSTEM (Figure 1) makes it possible to rotate the conveyor, thus ensuring optimal air exchange for the chiller and heat output from the cabinet. Quick and easy magnetic air filter maintenance. Moreover, the innovative “pinch off plier” allows easy removal of the chiller for maintenance. The standard built-in heater ensures continuous and optimal maintenance of temperature in all use conditions.

Technical Details

• Supply - 230V-50Hz (others supplies available on quantity)
• Cooling Power Consumption - 750 w
• Ecological Refrigerant - R410A
• Min. Flow rate - 3000 lt / h
• Tank Size - up to 3000 lt
• (water temp. 25°C - Room temp. 30°C - Heating load 0,3 w / lt)
• Dimensions - mm. 395 x 600 x 565 (h)
• Dimensions - in. 15.55 x 23.62 x 22.24 (h)
• Connections - fitting 1" - 25mm int. tube diameter
