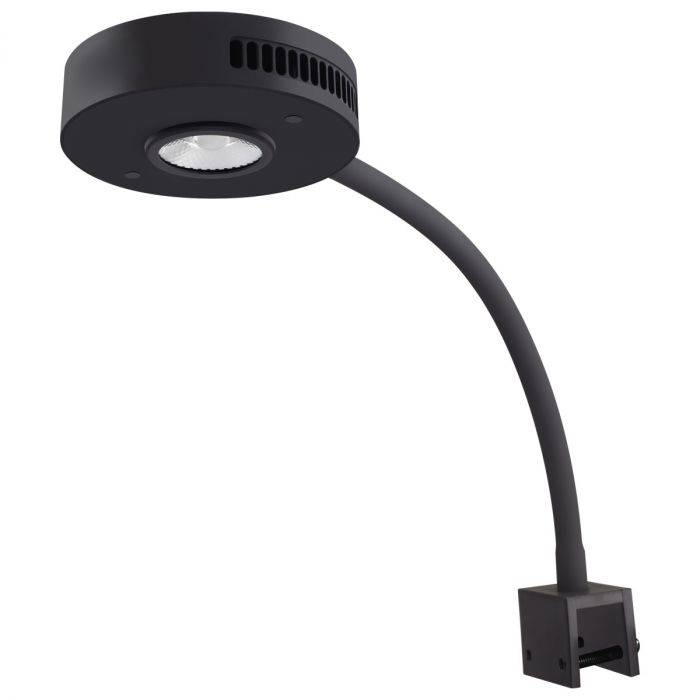

Reef Breeders Reef nano LED

The Reef Nano LED is designed specifically for growing corals in your Nano reef tank. Every light has a built in heat sink and silent temperature controlled cooling fan. In addition we added more LEDs for increased power. The Reef Nano LED is super compact and has a wide lens angle for even light distribution.

The Reef Nano LED has 12 3watt LEDs for a total of about 36watts of power, with a draw of 30watts from the wall.

Intuitive Controls.

The Reef Nano LED is controlled using 4 touch sensitive buttons and an LCD screed on top of the light. Each channel is individually controllable, and the controller has a built in ramping function.

You program the light by setting times, 1, 2, and 3 for each of the same channels. Time 1 is the starting time, and all channels should be set to 0. Time 2 is the peak hour, it should be the center of your daily program and have your desired settings for channels A, B, and C. Time 3 is your off time, and all channels should be set to 0. Your light will automatically ramp up from time 1 to time 2, then ramp down from time 2 to time 3. This emulates a full sunrise and sunset.

Simple Installation.

The included tank mounting bracket works with any tank with a rim less than 1″ in width. It is adjustable and can be used on tanks up to 24″ front to back. The Angle of the mounting arm sets the light to the ideal height over the water based on the width of your tank. As you slide your light towards the center of your aquarium, it also rises higher above the water level.

Slim Profile.

The Reef Nano LED is a purpose-built nano/pico reef light. Each light measures 4.25″ in diameter by 1.25″ tall.

Each Reef Nano LED is designed to cover a 12″ cube for SPS, an 18″ cube area for a mixed reef, and a 24″ cube for soft corals.
