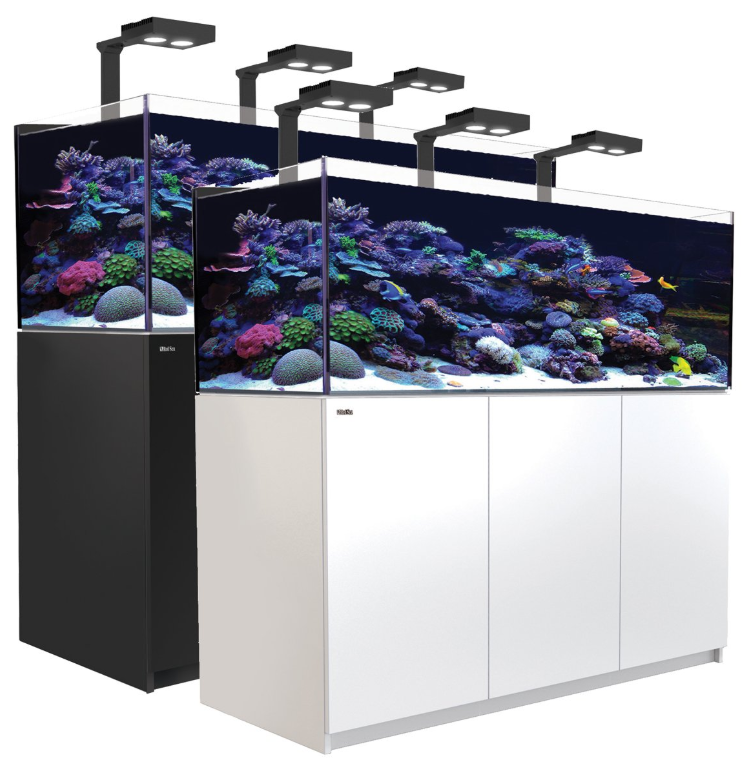

Red Sea REEFER™ XL Concept
The new REEFER™ XL 525 enables you to create substantial aquascaping while still providing plenty of water volume and space for your aquarium inhabitants. Both also feature proportionately larger sumps with an extra 3cm / 1.2″ water height in the skimmer chamber.
Red Sea’s REEFER™ series of Reef Systems provide advanced hobbyists with a solid foundation for building a fully featured reef or marine aquarium.
The REEFER™ series combines a contemporary, rimless, ultra-clear glass aquarium with a stylish cabinet and a comprehensive water management system including a professional sump with integrated automatic top-up and Red Sea’s unique silent down-flow system.
Incorporating technologies originally developed for Red Sea’s all-in-one MAX® coral reef systems, the REEFER™ series is designed for ease of operation while enabling the advanced hobbyist to install an unlimited choice of lighting, filtration, circulation and controllers to create a uniquely customized system.
Rimless, ultra-clear, beveled edge glass aquarium
Elegant Marine-Spec cabinet
Professional sump with constant height skimmer chamber and micron filter bags
Silent, regulated down-flow system with emergency overflow
Integrated automatic top-up system with reservoir
Assembly-ready piping – no gluing required
REEFER™ XL Specification
REEFER™ aquariums are constructed from thick, beveled-edge, ultra-clear glass to support their elegant and modern rimless design.
The aquarium sits on a recessed base that “floats” it above the cabinet, which seamlessly follows the contour of the glass.
The marine-spec laminated cabinet that houses the sump and vented space for chillers, is smartly finished with weatherproof, epoxy-painted doors. Offered with black or white exteriors, all cabinets have a black interior which maintains its clean appearance over time.
REEFER™ Water Management System
Removable surface-skimming combs surround the top of the centrally located overflow box that houses the downpipe, sump return pipe and the discreet multi-directional “eyeball” return outlet nozzle.
In the event of a blockage in the regulated downpipe, an additional emergency overflow pipe provides an unrestricted free flow of aquarium water directly to the sump.
On entering the sump the water passes through a 225 micron mechanical filter bag, before entering the filtration compartment that maintains a constant water height, making it suitable for all skimmers and other reactors.
In order to remove any air bubbles that may have escaped from the skimmer, the water passes through a bubble-stripping cascade on its way to the return pump chamber.
To ensure a constant water level in the pump compartment, all REEFER™ sumps include an integrated automatic freshwater top-up unit, guaranteeing a constant, stable water flow throughout the complete system.
Supplied as a complete self-assembly kit, all pipe work is ready without the need for any gluing.
|Main Features||Ultra clear front and side glass||ü|
|Ultra clear front glass thickness (mm)||15 (5/8”)|
|Built in surface skimmer||
|Integrated automatic top up system||
|System Volumes||Display tank water volume (L)||409 (L108 gal)|
|In cabinet sump water volume (L)||116 (31 gal)|
|Total system water volume (L)||525 (139 gal)|
|RO reservoir volume (L)||16.5 (4.3 gal)|
|System Dimensions||Display tank length (cm)||150 (59″)|
|Display tank height (cm)||55 (22″)|
|Display tank width (cm)||57.5 (22.6″)|
|Total system height with cabinet (cm)||142 (56″)|
|Sump Dimensions||Water height (cm)||27 (10.6”)|
|Skimmer chamber (cm)||49 x 48 (19.3”x19.3”)|
|Pump chamber (cm)||49 x 15 (19.3”x6”)|
|Return Pump||3/4” threaded hose barb – Pipe Int. Dia||25mm (1”)|
|Recommended flow (lph)||4000 (1060 gph)|
|(pump not included)|
