Orphek Violet Reef day 150cm
Orphek Violet Reef day 150cm

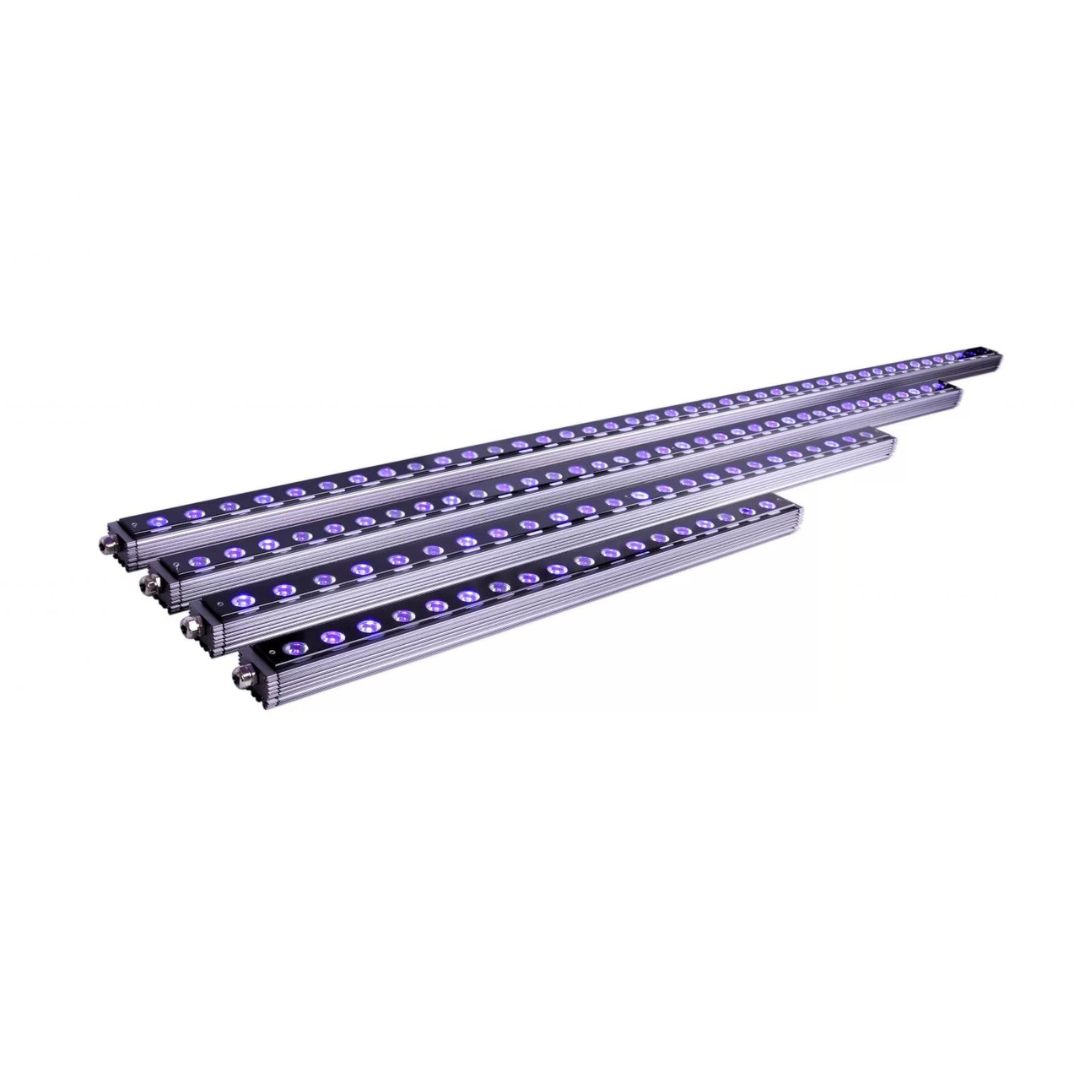

OR3 Violet Reef Day LED Bar
Slim, resistant, versatile and beautiful to display!
Applications:
- SPS/LPS coral coral growth, color and illumination
- Reef salted water tanks
- Designed to deliver the natural crisp look of both natural and synthetic compositions
- Replace T5/T8 lighting technology for aquariums
- Public venues / Private aquariums
- Indoors/ opened or closed areas or canopies, such as gallery displays.
- Also perfect for coral shops, coral farming, educational facilities, research centers, nurseries, refugium
Best for:
- Boost of coral color pop, health & growth
- Boost of extreme coral actinic fluorescence
- Achievement of natural crisp look
- Boost of photosynthesis chlorophylls a and b
- Supplemental light coverage
- Achievement of your desired light spectrum/ layout by mixing LED Bars
Features:
This third generation of Orphek Reef Aquarium LED Bars – the OR3 Violet Reef Day – is a mind-blowing product that comes with a number of significant improvements and valuable changes:
- Full Spectrum White LED 18,000K and Violet LEDs 430nm
- Customized high efficiency 5w wide range Dual-Chip power LEDs (same as Atlantik iCon)
- Exceptional durability IP67 certificated, made of high quality aluminum alloy, 8mm acrylic top cover and silicon gasket, excelling in performance even in extreme humid environments.
- Greatest PAR longevity of the market
- Outstanding versatility with 4 different sizes to meet any needed lighting layout and coverage.
FEATURES
QUANTITY OF LEDS & SPECTRUM
|
LEDS (QUANTITY/SPECTRUM) |
OR3 60 |
9 LEDS - 18000K / 9 LEDS - 430 - 435nm |
OR3 90 |
12 LEDS 18000K / 12 LEDS - 430 - 435nm |
OR3 120 |
18 LEDS 18000K / 18 LEDS - 430 - 435nm |
OR3 150 |
21 LEDS - 18000K / 21 LEDS - 430 - 435nm |
WEIGHT
|
NET WEIGHT (KG/LBS) |
GROSS WEIGHT (KG/LBS) |
OR3 60 |
1.20kg / 2.64lbs |
2.5kg / 5.51 lbs |
OR3 90 |
1.65kg / 3.68lbs |
3.0kg / 6.61 lbs |
OR3 120 |
2.30kg / 5.07lbs |
3.5kg / 7.71 lbs |
OR3 150 |
3.27kg / 7.20lbs |
4.5kg / 9.92 lbs |
SIZE & DIMENSIONS
|
SIZE (CM/INCHES) |
DIMENSIONS L/W/H (CM/INCHES) |
OR3 60 |
60cm / 24” |
63.5cm ( L ) X 5.0cm ( W ) X 3.6cm ( H ) 25” ( L ) X 1.97” ( W ) X 1.4” ( H ) |
OR3 90 |
90cm / 35” |
93.5cm ( L ) X 5.0cm ( W ) X 3.6cm ( H ) 36.8” ( L ) X 1.97” ( W ) X 1.4” ( H ) |
OR3 120 |
120cm / 48” |
123.5cm ( L ) X 5.0cm ( W ) X 3.6cm ( H ) 48.7” ( L ) X 1.97” ( W ) X 1.4” ( H ) |
OR3 150 |
150cm / 60” |
153.5cm ( L ) X 5.0cm ( W ) X 3.6cm ( H ) 60.4” ( L ) X 1.97” ( W ) X 1.4” ( H ) |
ELETRIC PARAMETER
|
POWER CONSUMPTION |
INPUT VOLTAGE |
OUTPUT CURRENT |
POWER FACTOR |
FREQUENCY |
OR3 60 |
30W |
DC30-65V |
450mA |
>90% |
50-60 Hz |
OR3 90 |
40W |
DC 40-82V |
450mA |
>90% |
50-60 Hz |
OR3 120 |
60W |
DC 30-65V |
900mA |
>90% |
50-60 Hz |
OR3 150 |
75W |
DC 35-71V |
1050mA |
>90% |
50-60 Hz |
