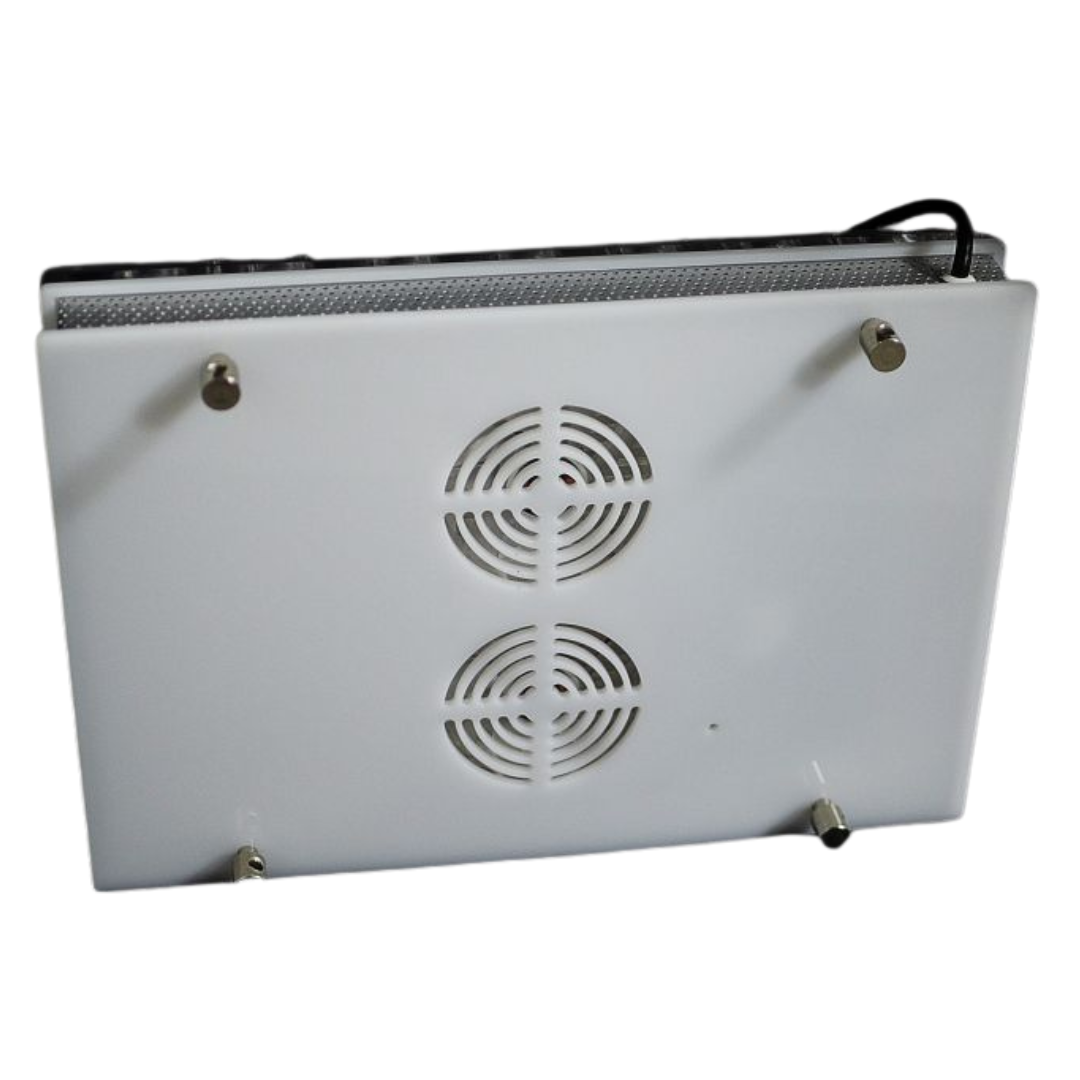

Orphek Atlantik Icon compact

Orphek Atlantik Icon compact

$1,350.00 SGD
$0.00 SGD $1,350.00 SGD
Sale Sold out
Tax included.

Advanced Intelligent connectivity – Wi-Fi / Bluetooth, 5G internet connectivity

Incredible new Orphek App. compatible with IOS & Android/ iCloud support

Groundbreaking technology 10,000% full spectrum dimming control system

Most powerful LED lighting solution – ~130 Watt /Highest efficiency power supply – PF (power factor) 0.97

Perfect spread for 24″ x 24″ / 60cm x 60cm SPS & LPS coral reef aquariums.

Atlantik iCon Compact LED Ratio Maps

Orphek Atlantik icon Compact LED map
Channels Spectrums Hues (colors)
Channel 1 Sunrise & Sunset hue (6000K) Natural color of both sunrise and sunset
Channel 2 Solar Noon hue (18,000K) Natural color of half way between sunrise and sunset
Channel 3 Cyan Blue hue (490nm/470nm) Natural color of the sea water under a clear sun daylight
Channel 4 Blue hue ( 447nm) Natural color of a deep blue ocean
Channel 5 Violet hue (420-430nm) Violet
Channel 6 UV/ Violet hue (405-415nm) UV / Violet



Features:

  • 42 5w Dual-Chip high efficiency power LEDs
  • Wi-Fi / Bluetooth, 5G internet connectivity
  • Built-in battery backup memory
  • High efficiency Mean Well drivers
  • Eight pre-installed programs & four channels
  • Full dimming capacity in all channels
  • Large storage with capacity for additional programs
  • Ability to program multiple units of Atlantik simultaneously
  • Ideal Spectrum for coral growth, color & health
  • 8 Different types of LEDs
  • New blue/cyan for more fluorescence coral color
  • 12 exclusive Dual-Chip UV/violet/white LEDs with increased intensity of Lm/w
  • In the  Atlantik Compact  All LEDs are exclusive Dual-Chip 5w, Total 84 chip


SPECIFICATIONS

Lens Options:

  • Default: Wide convex 120 degree lens
  • Custom: For Deep Aquarium  90 / 60 / 45 / 15 / and 5 degree lens

 Color/Materials

  •  Light Unit Body Material: White acrylic housing and silver stainless steel grill

Dimensions

  • Length: 13.58” (345mm)
  • Width: 9.37” (238mm)
  • Height: 2.11” (53.6mm)

Weight

Light unit weight: 8.7lbs (3.97kg)

Cords

  • Power extension cord with waterproof connector from Light Unit to Power Box: total 118? (3m)
  • Power Cord:  70.86? (1.8 m)

Hanging Kit

  • 2 steel cables:  7.87” (0.2m)
  • 1 steel cable: 47.24” (1.2 m)

Electrical

  • Mean Well Fan less power supply Model: CLG-150-spec
  • Input voltage: 90~264 VAC  (Selectable by switch)
  • Frequency:  50~60 Hz
  • Power consumption:  107 ~ 110 watt
  • Electrical outlet:  Region appropriate
