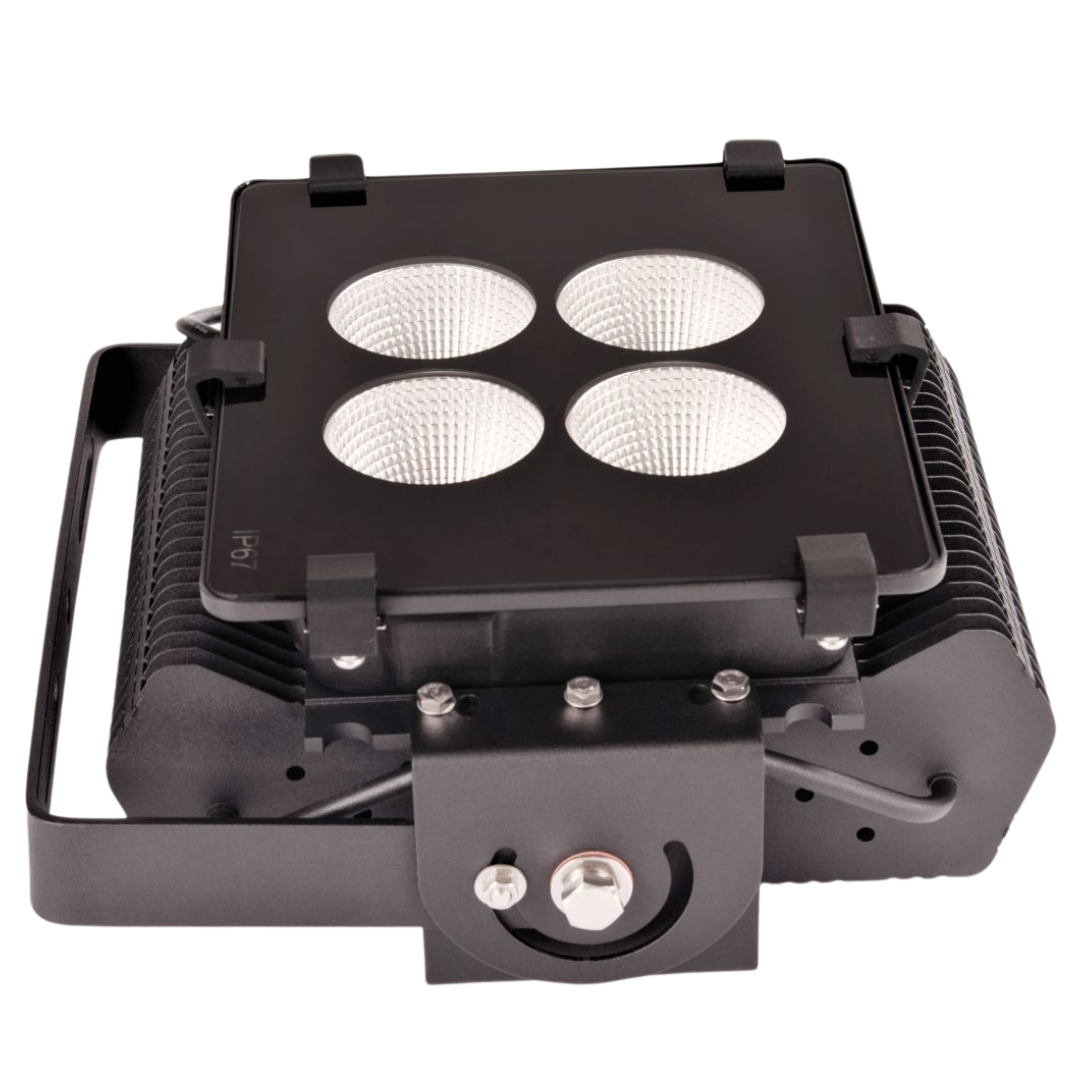

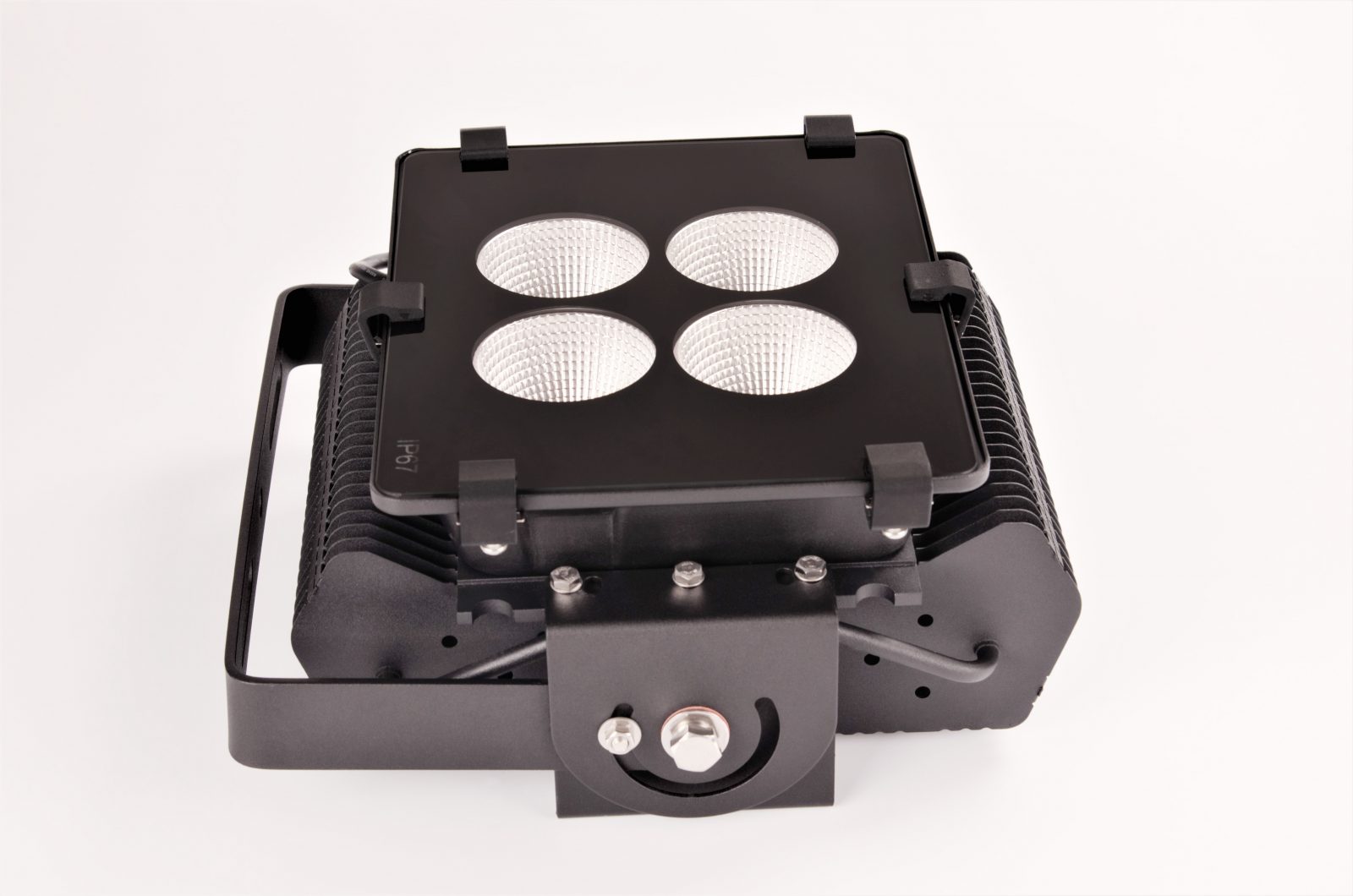

Orphek Amazonas 960 Icon

LEDs & Spectrums

The Orphek revolutionary matrix mix color 80W LED

Amazonas 960 iCon comes with:

• 4 x 80 Watt LED chip

• Each 80 Watt LED comes with 80 units of 3 Watt diodes

• 11 deferent types of LEDs to create the most perfect white LED or Blue Spectrum

Colors & Spectrums

Multi Color LED

• 18000K XP – Reef Day Light – SPS / LPS – 380nm – 700nm
• Blue Plus – Blue / Violet / UV – SPS / LPS – 380 – 500nm
• 6000K XP – Freshwater Planted – 380nm – 700nm
• Red XP – Planted / Refugium – 580nm – 700nm

Single Color LED

• 18000K (White – Salted water
• 14000K (White) – Salted water
• Blue (450-460nm) – Salted water
• 6000K (White) – Freshwater

Amazonas 960 Technical Information

Specifications

Electrical

• Power Consumption: ~ 320 watts
• PF (Power Factor) >0.95
• Input Current (Amps) 1.65
• Input Voltage (V) 230
• Output Voltage (V)36
• Input Voltage: 100-240VAC 227VAC for North America only
• Frequency: 47-63Hz
• MeanWell driver: 1xHLG-320-36A
• Electrical outlet: Region appropriate

Color/Materials

Light Unit Body Material:
Black high quality Aluminum housing with Tempered Glass Cover.

Cords

• Power extension cord with waterproof connector from light unit to power box: Total 196″ (5m)
• Power Cord: 59″ (1.5m)

Dimensions

• Length: 10.6″ (270mm)
• Width: 12.6″ (320mm)
• Height: 10.8″ (275mm)

Weight

• Light Unit Weight: 10.6 lbs (4.8kg)
• Power Supply Weight: 6.6 lbs (3kg)

Package Dimensions & Weight

• Length: 15.75″ ( 400mm)
• Width: 15.75″ (400mm)
• Height: 10.24″ (260mm)

• Package Weight: 22 lbs (10kg)
• Package V.W.: 19.8 lbs (9kg)

Product technical design and dimensions
