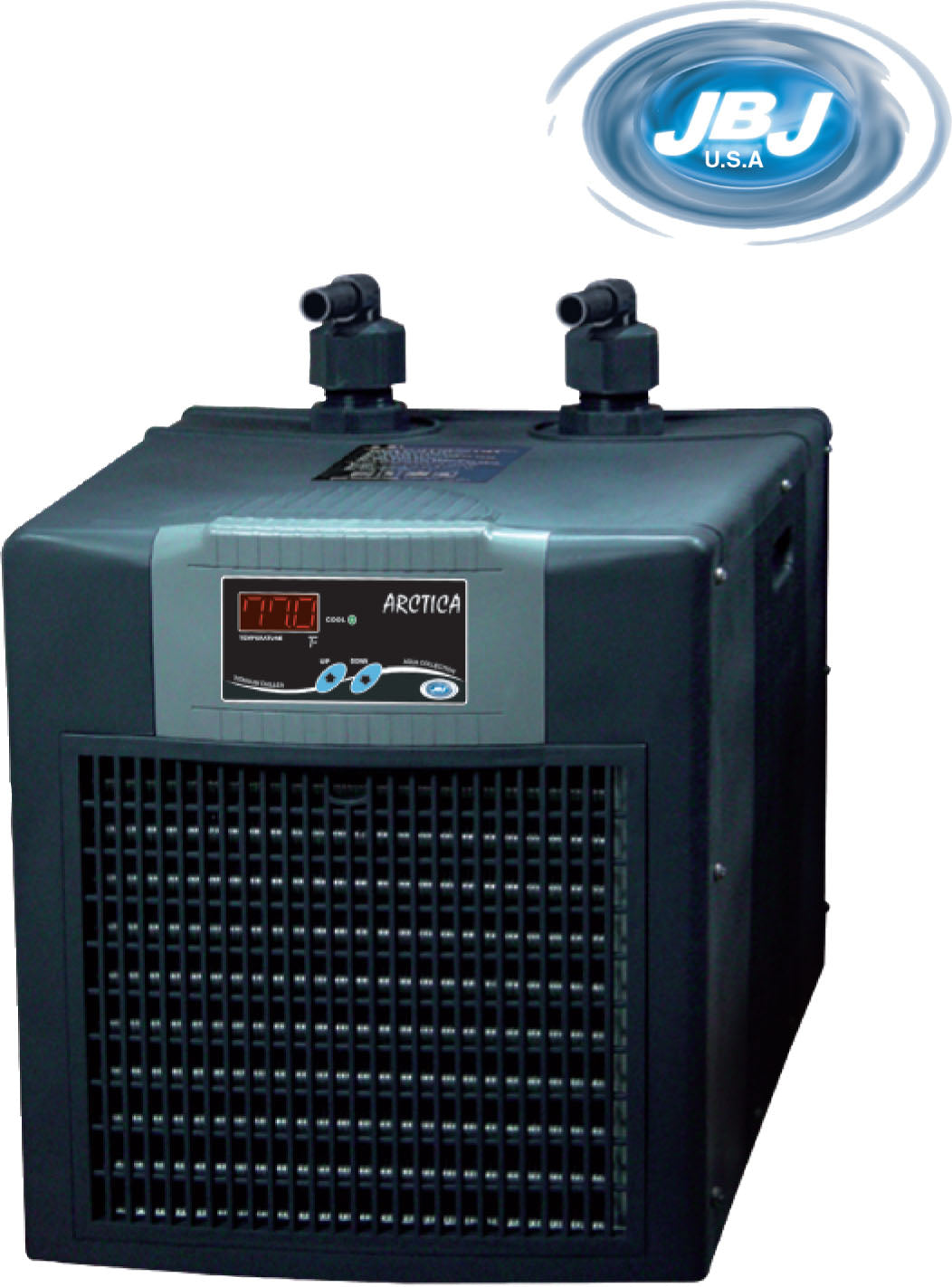

JBJ Arctica 1/3 HP Chiller JBJ-DBM250
The JBJ Arctica Titanium series aquarium chillers use some of the most advanced technological advancements in chiller design. The custom-engineered JBJ titanium coil maximizes contact for fast temperature pull-down while increasing chilling efficiency. This means the most cooling capacity per amp, which reduces energy costs.
The Arctica Titanium 1/3HP chiller is rated for a maximum aquarium size of 340 gallons. The easiest way to determine which chiller size is best for you is by using JBJ’s chiller calculator.
The corrosion-resistant condenser is located on the front side of the chiller. This configuration draws cool air from the front and exhausts the warm air out of the back. Be sure to leave enough room for the hot air to circulate away from the coils. The built-in thermostat and digital controller will automatically maintain the desired set temperature within +/-1 degree Fahrenheit.
The controller has a bright light LED that can be read day or night. The anti-freezing system prevents the chiller from accidental freeze-ups and damage. The simple two-button control pad is easy to use.
Hoses connect to the chiller by 1/2", 5/8" or 3/4" barbed fittings. You will need to supply a separate water pump to circulate the water from the aquarium and into the chiller. The recommended water pump should be rated at 480-2400 gallons per hour.
WHAT WE REALLY LIKE ABOUT THE JBJ ARTICA 1/3HP CHILLER:
- Simple plug and play installation
- Very quiet and vibration-free
- Easy to read LCD control panel
- Compact size fits anywhere
- Longest warranty - 2 years!
- Draws only 7.25 amps
JBJ ARCTICA TITANIUM CHILLER 1/3HP FEATURES:
- Smart memory features re-starts the chiller at the last temperature setting after a power failure
- Integrated thermostat continuously communicates with the digital controller for stable temperature control
- Big, bright LED panel for easy access day or night
- No hard plumbing is required
- Accommodates three hose sizes; 1/2", 5/8", 3/4"
- Titanium heat exchanger is a custom-designed to maximize temperature pull-down and efficiency
- No tools needed to clean the coils
- Low vibration/Low noise
- Integrated handles for easy carrying
- Two-year warranty
JBJ ARCTICA TITANIUM CHILLER 1/3HP SPECIFICATIONS
- Rating: Aquariums up to 340 gallons
- Horsepower: 1/3 HP
- Weight: 61 lbs.
- Voltage: 115V
- Amp draw: 7.25A
- Capacity: 4000 BTU/hr.
- Dimensions: 15.7"x 13.7 x 17.7" (DxWxH)
- Min/Max flow rate: 8/40 gpm
JBJ ARCTICA TITANIUM CHILLER COMPARISON
|Model||Item #||Capacity||Compressor||Flow Rate||Refrigerant||Inlet/Outlet||Weight|
|DBA-075||JB1111||130 Gal||1/10 Hp||240-960 GPH||R-134a||1/2", 5/8", 3/4"||44 lbs|
|DBA-150||JB1113||180 Gal||1/5 Hp||480-1320 GPH||R-134a||1/2", 5/8", 3/4"||49 lbs|
|DBE-200||JB1115||260 Gal||1/4 Hp||480-1920 GPH||R-134a||1/2", 5/8", 3/4"||51 lbs|
|DBM-250||JB1117||340 Gal||1/3 Hp||480-2400 GPH||R-134a||1/2", 5/8", 3/4"||61 lbs|
