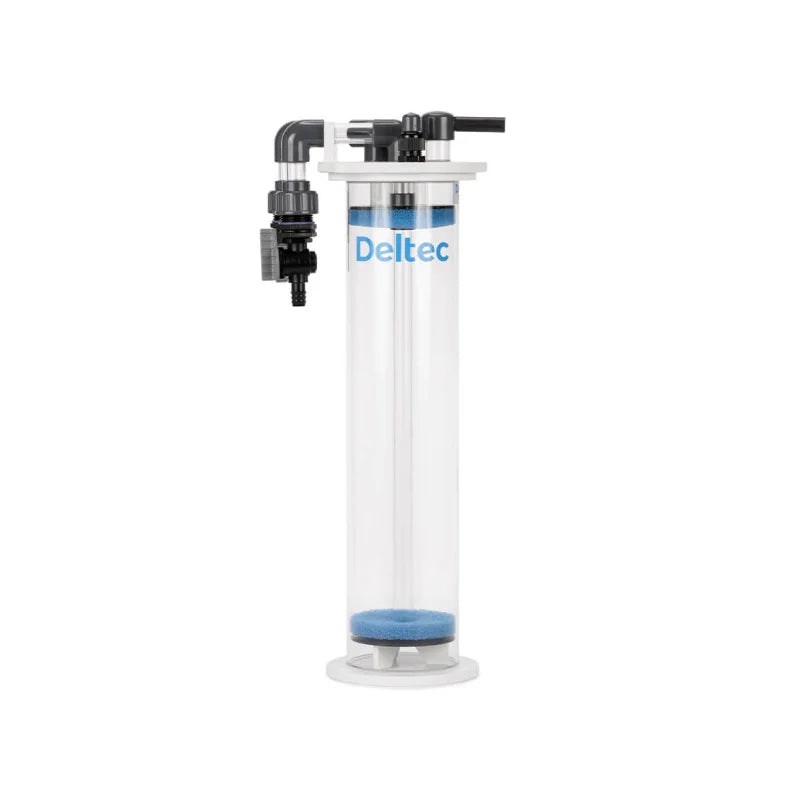

All Deltec fluidised reactor come with a twist off bayonet lid to allow easy access for replacement of the media. The water is forced down a central tube and is returned back up through a diffuser plate. Sponges are fitted either side of the media section to retain the finer particles.
The lid is fitted with a tap to adjust the flow and two hosetails connected to unions for simple removal or to allow hard piping to be used.
Capacity of FR90
Suitable for up to 1lt of Rowaphos or 1.4 lts of general media.
Flow rate
Up to 500lt/hr (pump not supplied)
Up to 130 USG/hr (pump not supplied)
Dimensions
190 mm x 170 mm x 510mm high (including fittings)
Capacity of FR110
Suitable for up to 2.2 lts of media
Flow rate
Up to 2500lt/hr (pump not supplied)
Up to 650 USG/hr (pump not supplied)
Dimensions
210 mm x 190 mm x 560 mm high (including fittings)
Capacity of FR 140
Suitable for up to 3.6 lts of media.
Flow rate
Up to 2500lt/hr (pump not supplied)
Up to 650 USG/hr (pump not supplied)
Dimensions
290 mm x 250 mm x 560 mm high (including fittings)
Capacity of 180
Suitable for up to 6.0 lts of media.
Flow rate
Up to 2500 lt/hr (pump not supplied)
Up to 650 USG/hr (pump not supplied)
Dimensions
300 mm x 250 mm x 1000 mm high (including fittings)
