Dab Nova 200 Pump

  • Sale
  • Regular price $200.00
Tax included.

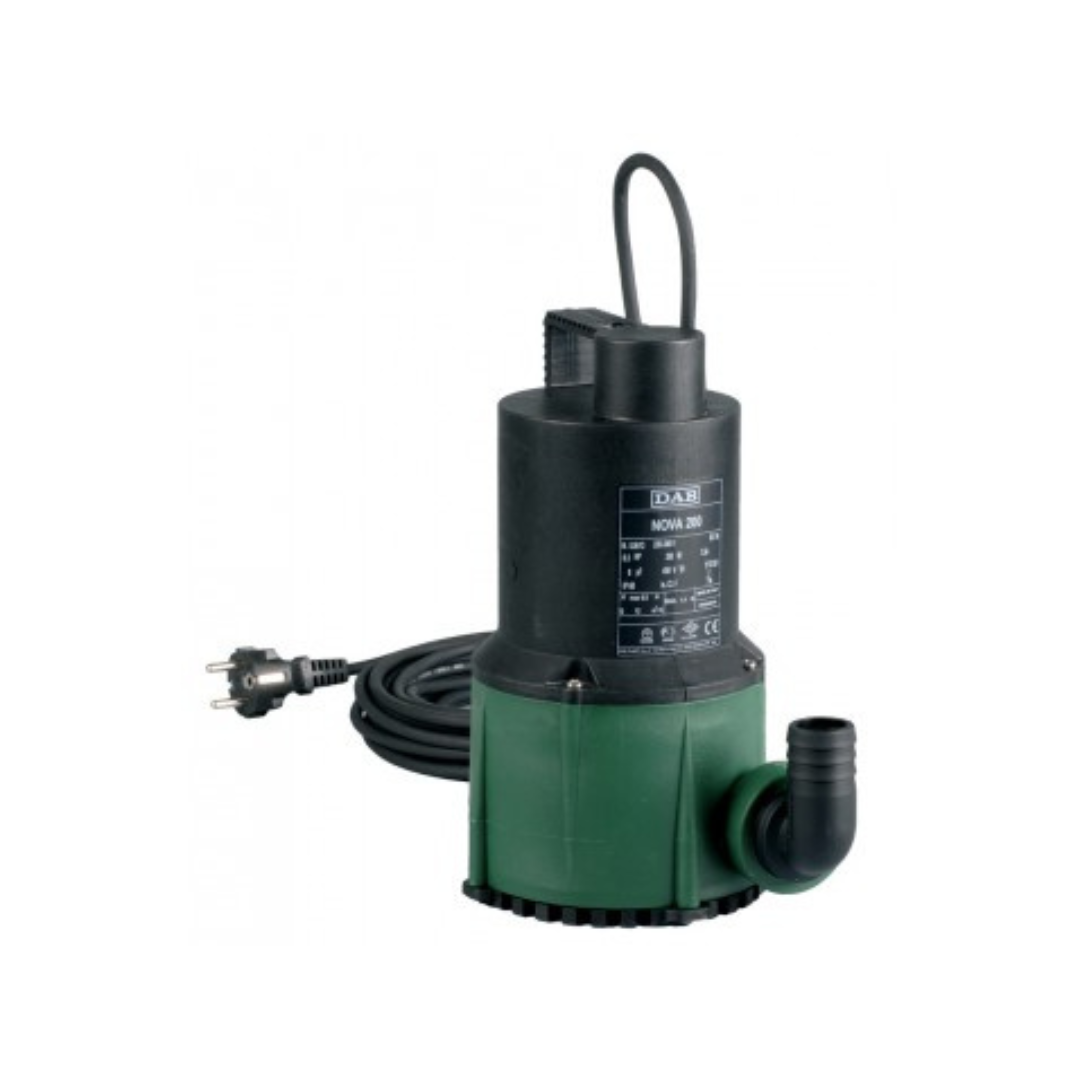

Fountain Pump - DAB Nova 200 MNA - 12000 LPH

Submersible pump for water features, drainage of clean water, suitable for domestic applications such as collection from wells, small floods of cellars and in gardening.

Features

  • Max water Output: 12000 Litres/Hour
  • All components are in rust-proof techno polymer
  • Built-in thermal and current overload protection
  • Minimum suction height from 7 mm
  • Compact dimensions

Advantages

  • No rusting over time
  • The built-in thermal and current overload protection protects the pump in the event of malfunctions
  • Collection possible even with very low water levels
  • Compact and rugged construction

Benefits

  • Product resistance and durability
  • Maximum adaptability to all domestic requirements
  • Usable also in very small wells

Capacity of DAB NOVA-200 MNA SV in Litres at Various Heads

HEAD (mt)
0
1.4
2.6
3.2
4.6
5.9
6.6
Litres Per Hour
12000
12000
9000
7500
4500
2400
0



Manufacturer DAB PUMPS S.p.A, Italy
Country of made Italy
Size Height – 25.3cm, Bottom width – 14.8cm
Weight 4.8kg
Material Technoplymer
Motor protection IP68
Standard voltage single-phase 220-240 V/50 Hz
Max Kw 0.35
HP & A 0.3 & 1.5
Cable length 5 Mt
Max immersion depth 7 metres
Max dry running time 1 minute
Installation fixed or portable in a vertical position
